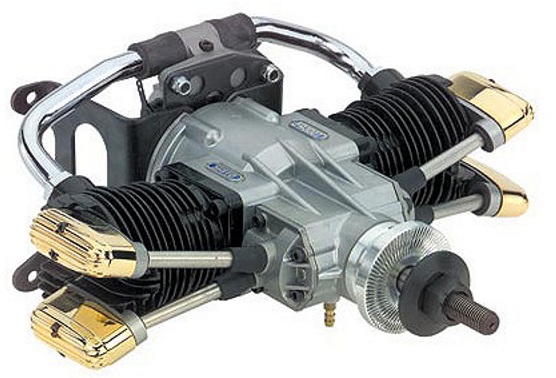

Diapole Micro 4 Stroke Engine

The most  foremost 4 -stroke engine on Earth

Gas Powering

Specs



Engine (Only) Weight:

76.2 oz (2.2 kg)

Benchmark Prop:

Mehzlik 23 x 8 @ 5900 rpm

Bore:

1.40 in (36mm)

Crankshaft Threads:

10mm

Cylinder Type:

Ringed chromed aluminum

Cylinders:

Twin

Displacement:

3.50 cu. in. (57.0 cc)

Fuel:

Premium gasoline

Fuel Type:

#  93 Octane or better

Muffler Type:

Flexible tube (included)

Muffler Weight:

4.2 oz (119 g)

Prop Range:

22 x 8 - 23 x 10

RPM Range:

1200 - 7000 rpm

Stroke:

1.10 in (28mm)

Total Weight:

87.1 oz (2.5 kg)

Type:

4-stroke

Width:

9.1 in (230mm)

Sample price $ 1388 USD
